Java Microphone Selection and Level Monitoring

This tutorial was written in November 2010. I have spent a decent chunk of time in the last year working with sound recording and playback in Java and I have never been disappointed. There are a few tricks though when it comes to sorting out the complex mixer, port, and line paradigms that programming Java sound entails. When deploying a recording application across different platforms there are also a lot of tiny details that come into play.

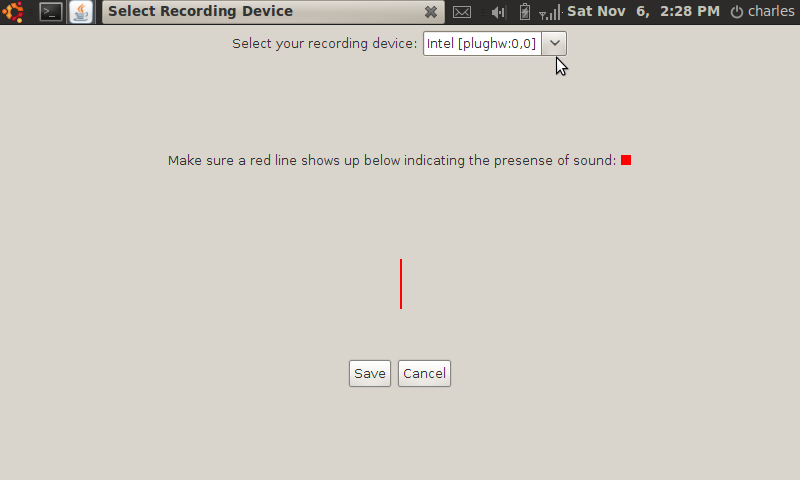

Java recording device selection on Ubuntu Linux.
This is a small application that allows the user to view all of the available recording devices on their computer. When choosing between these applications, the input levels are automatically displayed. This application and the following methods have been tested on Windows XP SP3, Windows Vista SP2, OSX 10.5, Ubuntu Linux 9.10, and Windows 7.

Download The Entire Java Source Code and Project

How to Run This Example

The application running from an executable jar.
In the main directory of the application you will find a .jar file named SoundSelect-20101106.jar. If you have the Java runtime environment installed, you should be able to double click this jar file and a user interface will appear.

In order to see the terminal/command line output of the application you can navigate to the main directory of this application containing the SoundSelect .jar file as well as the build.xml file and execute the following command java -jar SoundSelect-20101106.jar.

How to Re-compile This Example

This program was built using Apache Ant with the Java 1.6 JDK. When building this application, assuming you have Apache Ant and it is available on your command line (you need to put the path to Ant's bin directory into your system PATH), navigate in the command prompt/terminal window to the main directory of this application. This contains a file called build.xml. Ant will read the build.xml file and preform different actions depending on the commands provided. There are two primary commands to compile and run this application, then to clean it up.

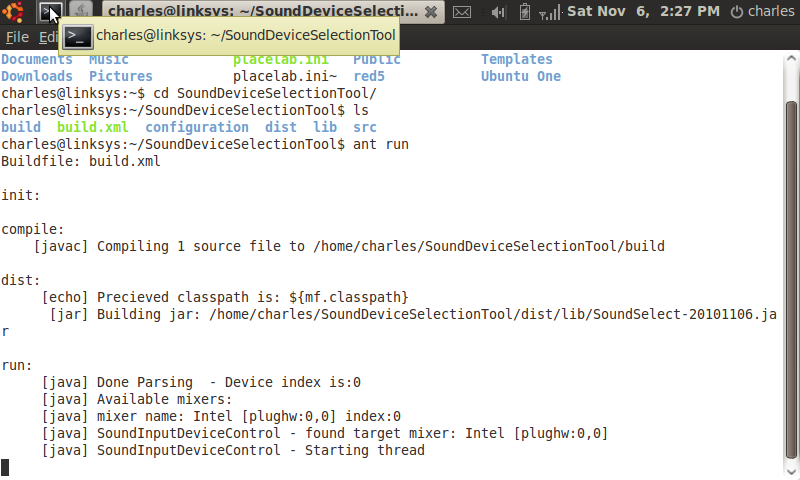

An example of using the ant run command in ubuntu.
So assuming your terminal/command prompt window is in the same directory of this application, Ant is available on your system PATH, and you have the Java JDK installed with javac on your PATH, you can type the following to compile and run the application:

ant run

Running this command compiles the .java files in the src directory, creates a folder called "build" and places the compiled java .class files in there. It then creates a directory called dist then inside of that one called lib, then inside of that an executable .jar file with the current date is created.

Finally, this command takes the executable .jar file that was just created and will run it with all of the appropriate In order to delete the dist and build folders you can also run the following command:

ant clean

An example of using ant clean on OSX with all the folders present.

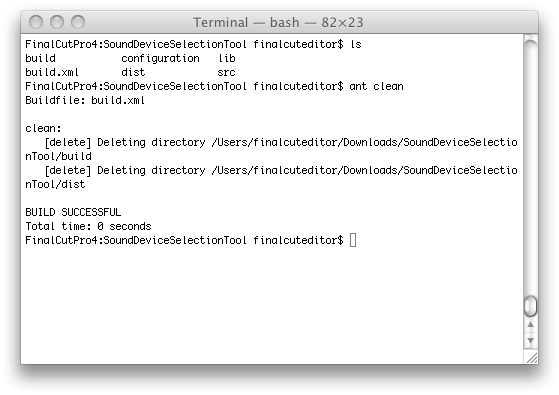

Showing command line output of ant clean in OSX.

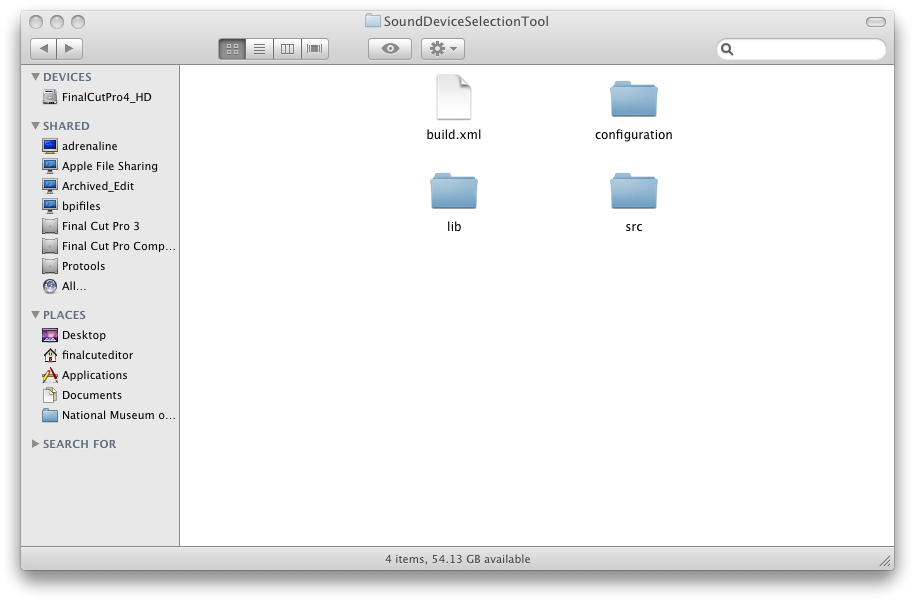

The folder structure after ant clean was run without the dist and build folders.
The clean and run commands are not custom or standard to ant. If you look inside the build.xml file, you will see that I have created targets called clean, run, and several others that preform all the actions.

Code Details

At a high level the src/ file is the main class of this application. First thing, an instance of the configuration file loader: src/com/technogumbo/ is made and parameters are loaded from the file configuration/ClientConfiguration.xml. Then instances of the UI (src/com/technogumbo/ui/ and the sound input control (src/com/technogumbo/devices/ are made. Events are setup to route between these two and

The selected device automatically attempts to open upon startup of this application. Each time a different item from the drop down is selected, that mixers TargetDataLine is automatically opened.

If the user presses the "Save" button, the will save the selected mixers index into the file: configuration/ClientConfiguration.xml.

All of the tips for manipulating Java Sound are contained in the file src/com/technogumbo/devices/

This application only lists mixers that have the TargetDataLine functionality. A TargetDataLine is the feature of a mixer that is needed in order to do sound recording. The key to determining if a mixer has recording support is to check if it supports a TargetDataLine. This can be done with the following pieces of code extracted from

// Setup a Line.Info instance specifically of the TargetDataLine class.
Line.Info targetDLInfo = new Line.Info(TargetDataLine.class);

// Get all the mixers from the Java AudioSystem
Mixer.Info[] mixerInfo = AudioSystem.getMixerInfo();

// Iterate through each mixer and see if it supports TargetDataLine
for(int cnt = 0; cnt < mixerInfo.length; cnt++) {

// Get a temporary instance of the current mixer
Mixer currentMixer = AudioSystem.getMixer(mixerInfo[cnt]);

if( currentMixer.isLineSupported(targetDLInfo) ) {
// This mixer supports recording }

In order to monitor the levels of sound input, you essentially have to follow a similar procedure to recording, but throw away the input data in order to check the sound levels. There isn't any capability within Java to check for the level of sound. You have to analyze the input bits and do some calculation on them. The following code will allow you to convert input sound bits into tangible values thanks to the Java forums at:

The methodology of using an inner class in a separate thread for recording is taken from Dick Baldwin's excellent Java Sound tutorials:

//Inner class to capture data from the selected input mixer
class CaptureThread extends Thread{

//An arbitrary-size temporary holding buffer
byte tempBuffer[] = new byte[500];
public void run(){
System.out.println("SoundInputDeviceControl - Starting thread");
threadEnded = false;
stopCapture = false;
//Read data from the internal buffer of
// the data line.

int cnt =, 0, tempBuffer.length);
if(cnt > 0){
sendOutPresenceUpdates(calculateRMSLevel(tempBuffer), "");
}//end if
}//end while

threadEnded = true;
}catch (Exception e) {
}//end catch
}//end run
}//end inner class CaptureThread

// Calculate the level of the audio
private int calculateRMSLevel(byte[] audioData)
// audioData might be buffered data read from a data line

long lSum = 0;
for(int i=0; i < audioData.length; i++)
lSum = lSum + audioData[i];

double dAvg = lSum / audioData.length;

double sumMeanSquare = 0d;

for(int j=0; j < audioData.length; j++)
sumMeanSquare = sumMeanSquare + Math.pow(audioData[j] - dAvg, 2d);
double averageMeanSquare = sumMeanSquare / audioData.length;
return (int)(Math.pow(averageMeanSquare,0.5d) + 0.5);

You may still encounter issues depending on the sound hardware in the computer this is running on. If that occurs, I would check the list of recording formats supported by the selected mixer. A listing of devices will be output in the console window whenever you select a new device from the drop down if you uncomment the following section of code in in the function "StartMonitoringLevelsOnMixer":

HashSet<AudioFormat> inputFormats = new HashSet<AudioFormat>();
HashSet<AudioFormat> outputFormats = new HashSet<AudioFormat>();

// Collect the input formats

for (Line.Info lineInfo : currentMixer.getSourceLineInfo()) {
for (AudioFormat newFormat : ((DataLine.Info)lineInfo).getFormats())

// Collect the output formats

for (Line.Info lineInfo : currentMixer.getTargetLineInfo()) {
for (AudioFormat newFormat : ((DataLine.Info)lineInfo).getFormats())
// List all supported I/O types for the target mixer

System.out.println("------------ Supported Input Formats --------------");
Iterator iterator = inputFormats.iterator();
while (iterator.hasNext()){
System.out.println( + " ");

// List all supported I/O types for the target mixer

System.out.println("------------ Supported Output Formats --------------");
iterator = outputFormats.iterator();
while (iterator.hasNext()){
System.out.println( + " ");

I hope these samples will help you get off to a good start with Java Sound programming.

Download The Entire Java Source Code and Project


November 6, 2010 6:30 pm

If you happen to get an array out of bounds exception when running this, change the configuration file in configuration/ClientConfiguration.xml the node recordDeviceIndex to 0.
